The Ultimate Guide to Installing and Leveling Your Ice Bin Legs
In the fast-paced environment of any commercial kitchen, restaurant, bar, or hotel, commercial ice machines and their companion ice bins are unsung heroes. They work tirelessly to provide a constant supply of clean, fresh ice. However, the performance and longevity of this crucial equipment often depend on something as seemingly simple as its foundation: the legs. A proper commercial ice bin setup is not just about placing the unit in a corner; it's a precise process that ensures safety, efficiency, and the protection of your valuable investment. An unstable or unlevel ice bin can lead to a cascade of problems, from hazardous working conditions to premature equipment failure.
This ultimate guide is designed to walk you through every critical detail of ice bin leg installation and the meticulous art of leveling. We'll cover everything from the tools you'll need to troubleshooting common issues. Whether you're a seasoned kitchen manager or setting up your first food service operation, mastering this process will ensure your ice station is stable, sanitary, and ready for service. Following these steps will not only make your daily operations smoother but also help you understand how to level an ice machine and bin assembly for optimal performance and drainage.
Why Proper Installation and Leveling is Non-Negotiable
Before we dive into the nuts and bolts, it's essential to understand why this process is so critical. Rushing through the setup or overlooking the importance of a perfectly level surface can have significant consequences for your business.
1. Enhancing Workplace Safety
First and foremost is safety. A commercial ice bin, especially when full of ice and topped with a heavy ice machine head, is an incredibly heavy piece of equipment. If its legs are installed incorrectly or it’s not perfectly level, it can become a serious tipping hazard. A wobbly bin can easily be knocked over in a busy kitchen, potentially causing severe injury to staff. Furthermore, an unlevel bin can cause water from melting ice to spill onto the floor, creating a dangerous slip-and-fall risk that can lead to accidents and liability issues.
2. Protecting Your Equipment Investment
Commercial ice machines and bins are significant capital investments. An improperly leveled unit places uneven stress on the frame, welds, and joints of both the bin and the machine. Over time, this constant, unbalanced pressure can lead to structural fatigue, cracks, and leaks. Moreover, most ice machine heads are designed to operate on a level surface. An incline can affect the water distribution over the evaporator plate, leading to inefficient ice production, and can strain internal components, leading to costly repairs and a shortened lifespan for the entire system.
3. Ensuring Optimal Performance and Sanitation
Proper leveling is directly linked to the operational efficiency and sanitation of your ice supply. Ice bins are designed with a slight internal slope leading to a drain. This ensures that meltwater is constantly and completely removed. When the bin is not level, water can pool in corners, creating a stagnant environment that is a perfect breeding ground for slime, mold, and bacteria. This not only contaminates your ice supply, posing a health risk to your customers, but can also lead to foul odors and health code violations. A correctly leveled bin guarantees efficient drainage, keeping your ice fresh and your bin sanitary.
4. Adhering to Health and Safety Standards
Local health departments and workplace safety organizations have strict codes regarding the installation of commercial kitchen equipment. These regulations often mandate that equipment must be stable, secure, and installed in a way that allows for easy cleaning underneath and around the unit. A proper ice bin leg installation ensures your setup is compliant, helping you avoid fines and pass inspections with confidence.
Pre-Installation Checklist: Tools and Materials You'll Need
Preparation is key to a smooth and successful installation. Before you begin, gather all the necessary tools and materials. Having everything on hand will prevent interruptions and ensure you can complete the job correctly and efficiently.
Essential Tools:
- Adjustable Wrench or Socket Set: For tightening the legs and any brace fasteners. Check your manufacturer's guide for specific nut and bolt sizes.
- Carpenter's Level: A 24-inch or longer level is ideal for checking the top of the bin for accuracy across its surface. A smaller torpedo level can also work in a pinch.
- Rubber Mallet: Useful for gently tapping parts into place without causing damage.
- Protective Blanket or Cardboard: To place on the floor to prevent scratching the ice bin's stainless steel finish while you work on it upside down.
- Work Gloves: To protect your hands from sharp edges and improve your grip.
- Cleaning Cloths and Degreaser: For cleaning the mounting points on the bin to ensure a secure fit.
- Thread-Locking Compound (Optional but Recommended): A medium-strength (blue) thread-locker can be applied to the leg threads to prevent them from loosening over time due to vibrations.
Components:
- The Ice Bin
- Set of Legs (most are adjustable ice bin legs with threaded feet)
- Leg Braces (if included or required for your model)
- All necessary fasteners (bolts, nuts, washers) that came with the unit.
Step-by-Step Guide: The Perfect Ice Bin Leg Installation
With your tools and components ready, it's time to begin the installation. Follow these steps carefully for a secure and stable foundation.
Step 1: Prepare Your Workspace and the Bin
Choose the final location for your ice bin. Ensure the area is clean, dry, and free of any debris. Lay down your protective blanket or cardboard next to this area. With the help of another person, carefully unbox the ice bin and place it upside down on the protected surface. This provides easy access to the leg mounting points on the base of the unit.
Step 2: Inspect All Components
Before attaching anything, take a moment to inspect the ice bin, legs, and all hardware. Check for any dents, scratches, or other damage that may have occurred during shipping. Verify that you have the correct number of legs and fasteners as listed in the instruction manual.
Step 3: Clean the Mounting Sockets
On the bottom of the bin, you'll find threaded sockets where the legs will be screwed in. Use a clean cloth and a small amount of degreaser to wipe these sockets and the surrounding area. Removing any manufacturing oils, dust, or debris will ensure the legs thread in smoothly and create a stronger, more secure connection.
Step 4: Attach the Legs
Take one of the legs and carefully align its threaded post with a mounting socket. Begin to turn it by hand in a clockwise direction. It’s crucial to ensure it’s not cross-threaded. The leg should screw in easily. If you feel significant resistance, back it out and try again. Hand-tighten each of the four (or more) legs until they are snug against the base of the bin. At this stage, ensure the adjustable feet on the bottom of the legs are screwed in most of the way to give you maximum adjustment range later.
Step 5: Final Tightening
Once all legs are hand-tight, use your adjustable wrench or socket to give each leg a final quarter- to half-turn. The goal is to make them firm and secure, but be careful not to over-tighten, as this could strip the threads in the socket or on the leg itself. The bin should feel like a single, solid unit.
Step 6: Install Leg Braces (If Applicable)
For larger ice bins, leg braces are often included to provide additional lateral stability. These braces typically connect adjacent legs, forming a rigid frame. Consult your manual for the specific mounting instructions. Usually, this involves attaching the braces to pre-drilled holes or clamps on the legs using the provided bolts and nuts. Tighten them securely.

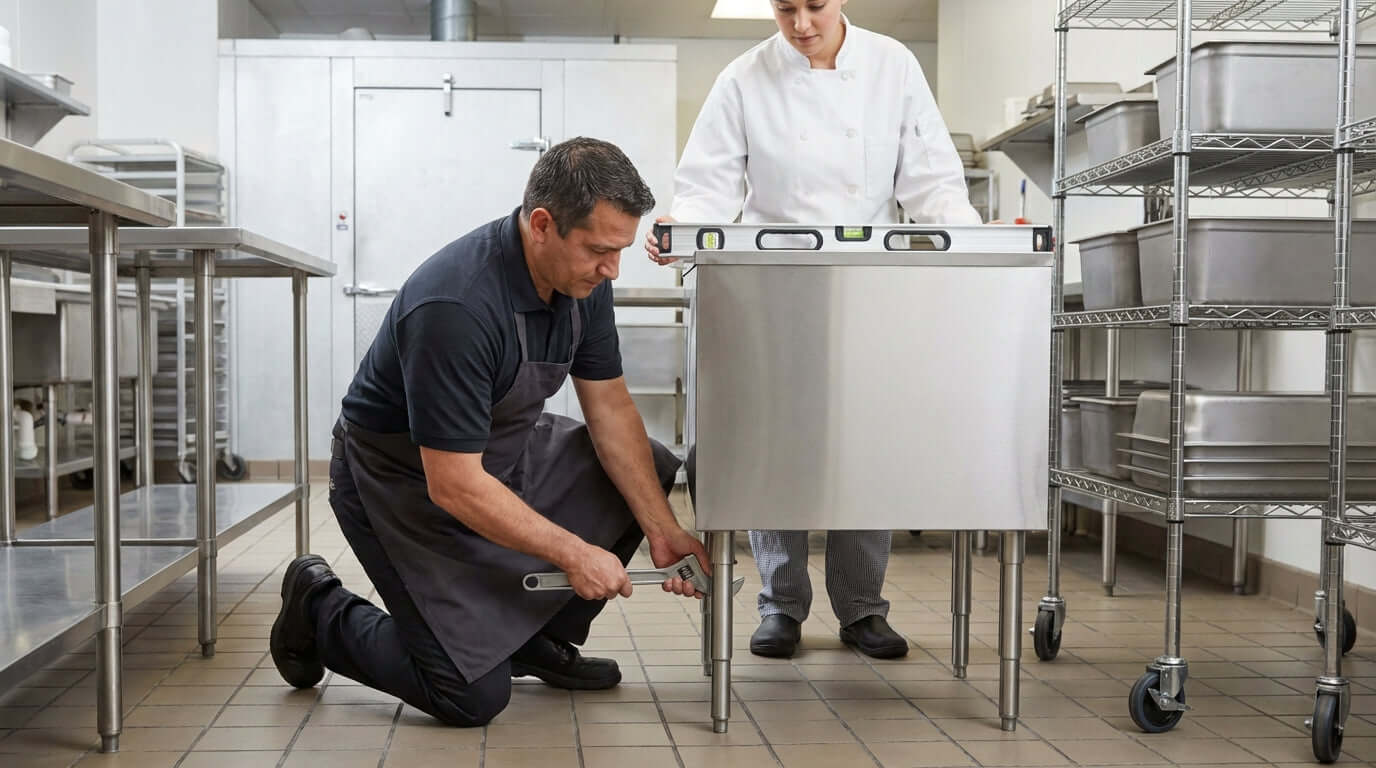

The Art of Precision: Leveling Ice Bin Legs Like a Pro
With the legs securely installed, the next phase is the most critical: the process of leveling ice bin legs. This requires patience and precision. Rushing this step will negate all the hard work you’ve just done.
Step 1: Position the Unit
With assistance, carefully lift and turn the ice bin upright onto its newly installed legs. Move it into its final operating position, leaving enough space at the back and sides for proper air circulation (if an ice machine will be placed on top) and for cleaning, as per manufacturer and health code requirements.
Step 2: The Initial Level Check
Place your carpenter's level on top of the bin’s upper rim. First, check the level from side to side. Note the position of the bubble. If it's off-center, it will indicate which side is higher. Next, place the level on the rim from front to back and check again. This gives you a complete picture of the bin's current orientation.
Step 3: Making Adjustments
This is where your adjustable ice bin legs come into play. The bottom of each leg has a threaded foot, often called a bullet foot. To adjust the height of a corner, you simply turn this foot:
- To raise a corner: Turn the foot counter-clockwise (as if you are unscrewing it). This extends the foot, lifting that corner of the bin.
- To lower a corner: Turn the foot clockwise (as if you are tightening it). This retracts the foot, lowering that corner.
Start with the lowest corner. Adjust the leg foot until the bin starts to become level. You may need a wrench to get a good grip on the foot if it’s tight. Make small, incremental adjustments—a half-turn at a time is often enough.
Step 4: Re-Check and Repeat
After each adjustment, re-check the levelness in both directions (side-to-side and front-to-back). Leveling is an iterative process. Adjusting one corner can slightly affect the others, so you will need to go back and forth, making small tweaks until the bubble is perfectly centered in both directions.
Step 5: The Wobble Test
Once your level indicates that the bin is perfectly flat, perform a physical check. Firmly press down on each corner of the bin. It should be completely solid, with no rocking or wobbling whatsoever. If you detect any movement, one of the legs is likely not making firm contact with the floor. Identify the wobbly leg and extend its foot just enough to make solid contact and eliminate the movement. Double-check with your level one last time.
Step 6: Final Leveling with the Ice Machine
The job isn't quite done yet. The final, and perhaps most important, part of how to level an ice machine and bin assembly is to perform the check *after* placing the ice machine head on top of the bin. The significant weight of the machine can cause the legs or floor to settle slightly, throwing off your perfect level. Carefully place the ice machine on the bin according to its manual. Then, place your level on top of the ice machine itself and repeat the leveling process, making any final micro-adjustments needed to get the entire assembly perfectly level.
Troubleshooting Common Installation and Leveling Issues
Even with careful planning, you may encounter a few challenges. Here’s how to handle some common problems.
Problem: A leg is difficult to thread into the socket.
Solution: Stop immediately to avoid cross-threading. Unscrew the leg completely and inspect the threads on both the leg and in the socket for damage or debris. Clean them out and try again, ensuring you are starting the thread perfectly straight. A tiny bit of food-grade lubricant can help, but it should not be forced.
Problem: The ice bin wobbles even though the level says it's flat.
Solution: This usually means one leg is not carrying its share of the load. This is often caused by a very uneven or warped floor. Identify the leg that is not making firm contact and extend its adjustable foot until the wobble is gone. In extreme cases of uneven flooring, a solid, non-absorbent shim may be placed under a leg foot, but this should be a last resort.
Problem: The adjustable feet are hard to turn.
Solution: The threads may be dirty or seized. Try to clean them with a wire brush. If the bin is already loaded, you may need to have a helper slightly lift the corner you are working on to take the weight off the leg, allowing the foot to turn more easily.
Long-Term Maintenance and Care
Your commercial ice bin setup is complete, but the work doesn't end there. Regular maintenance ensures it remains stable and sanitary for years to come.
- Periodic Checks: At least once a month, re-check the bin for levelness and stability. The vibrations from the ice machine and the hustle of a busy kitchen can cause legs to loosen or settle over time.
- Keep it Clean: Regularly clean the legs, feet, and the floor underneath the ice bin. This prevents the buildup of dirt and grime and makes it easy to spot any potential issues like leaks or rust. It also prevents the adjustable feet from seizing due to corrosion.
- Re-Level After Moving: Any time the ice bin is moved for deep cleaning or maintenance, it must be re-leveled from scratch once it is returned to its position.
Conclusion: A Foundation for Success
A successful ice bin leg installation is the foundation upon which the efficiency, safety, and longevity of your ice program are built. By taking the time to prepare properly, install the legs securely, and level the unit with precision, you are doing more than just assembling equipment; you are investing in the smooth operation of your business. A stable, perfectly level ice bin will provide reliable service, ensure the highest standards of sanitation, and protect your staff and customers. By following this guide, you can be confident that your commercial ice station is set up for success from the ground up.
