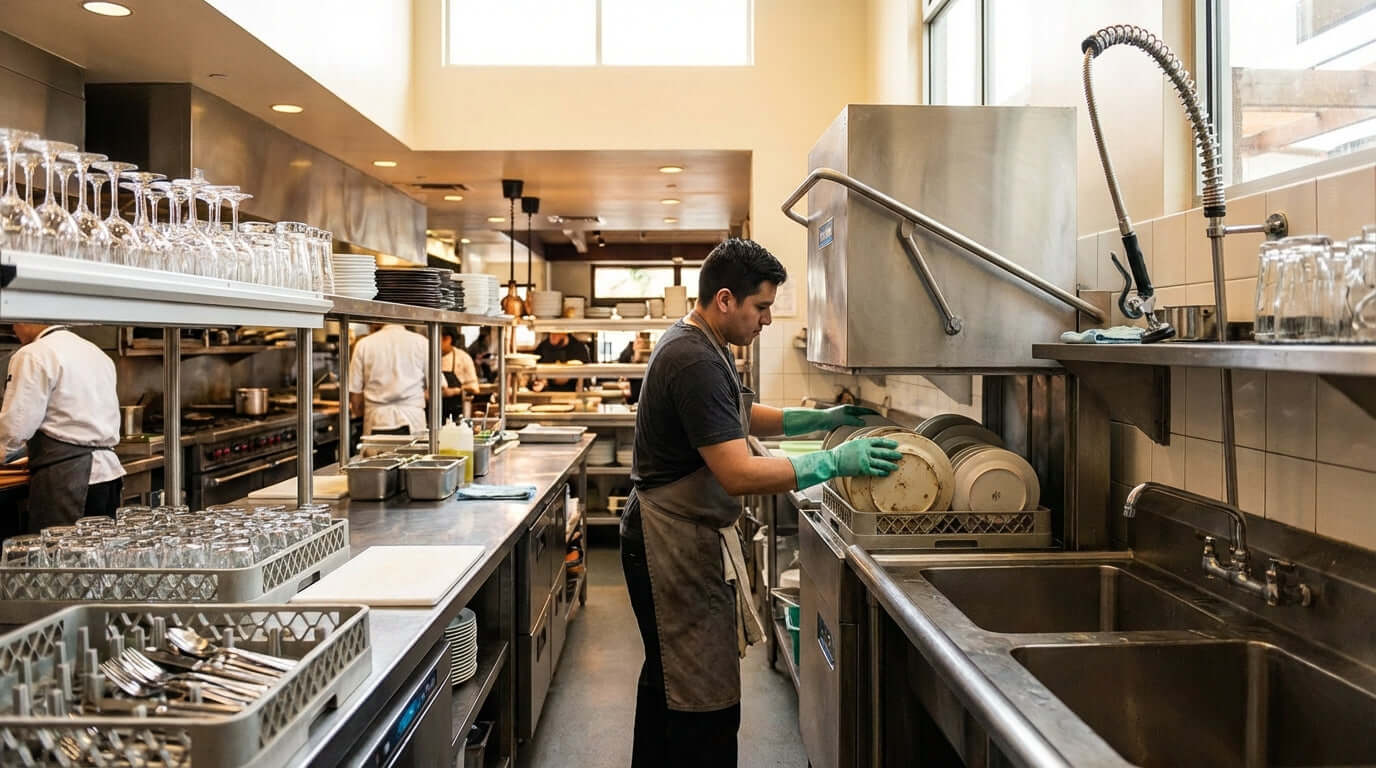

Mastering the Flow: How to Design the Ultimate Efficient and Ergonomic Warewashing Station
In the high-stakes, fast-paced world of food service, the warewashing station is the unsung hero. Tucked away from the glamour of the front-of-house and the sizzle of the line, the "dish pit" is the engine that keeps the entire operation running. A poorly designed station creates immediate bottlenecks, leading to service delays, frustrated staff, costly breakage, and even serious health and safety risks. Conversely, a thoughtfully designed, efficient, and ergonomic warewashing station is a strategic asset. It transforms a potential point of failure into a powerhouse of productivity, sanitation, and staff well-being. This comprehensive guide will walk you through every critical aspect of planning and implementing the perfect warewashing station design for your commercial kitchen, ensuring a seamless flow from dirty to clean.
Why Your Warewashing Station Design Matters More Than You Think
It's easy to overlook the dish pit when planning a new kitchen or renovating an existing one, often allocating leftover space and a minimal budget. This is a critical mistake. The impact of your warewashing station's design reverberates throughout your entire operation, affecting everything from profitability to staff morale.
Boosting Efficiency and Workflow
The primary function of a warewashing station is to process soiled dishes, glassware, and cookware quickly and effectively, returning them to service. A logical and streamlined commercial kitchen dishwashing layout eliminates unnecessary steps, prevents backtracking, and minimizes handling. During a busy dinner rush, the speed at which you can turn over plates and pans can be the difference between a smooth service and a complete meltdown. An efficient dishwashing process ensures that chefs always have the pans they need and servers never run out of clean plates or glassware, directly impacting your restaurant's capacity and customer satisfaction.
Achieving Significant Cost Savings
An optimized setup is a financially savvy one. A well-designed station reduces the risk of accidental drops and collisions, significantly cutting down on the cost of replacing broken china and glassware. Modern, energy-efficient dishwashers, when matched correctly to your volume, drastically reduce water, electricity, and chemical consumption. Furthermore, an efficient process means labor hours are used more effectively. When staff can process more dishes in less time and with less effort, you're directly improving your labor cost efficiency—one of the biggest expenses in any food service business.
Prioritizing Employee Safety and Morale
The dish pit is a notoriously demanding work environment, often involving long hours of standing, repetitive motions, heavy lifting, and exposure to hot water and chemicals. An ergonomic warewashing station is not a luxury; it's a necessity. Proper counter heights reduce back strain, anti-fatigue mats alleviate leg and foot pain, and a logical layout minimizes the twisting and reaching that can lead to musculoskeletal injuries. A safer, more comfortable environment leads to happier, more engaged employees, which in turn reduces costly staff turnover and the risk of workers' compensation claims.
Upholding Uncompromising Sanitation and Food Safety
Perhaps the most critical function of the warewashing process is ensuring proper sanitation to protect your customers. The design of your station plays a pivotal role in preventing cross-contamination. A clear, linear flow from a designated dirty drop-off area to a separate clean landing and storage area is fundamental. This separation is the cornerstone of food safety in the back-of-house, preventing bacteria from soiled wares from ever coming into contact with sanitized items. Proper equipment, from high-temperature dishwashers to automated chemical dispensers, guarantees that every item is sanitized according to health code standards.
The Core Components of a High-Performing Warewashing Station
Building an effective restaurant dish pit setup requires selecting the right pieces of equipment and arranging them in a logical sequence. Each component has a specific role in the overall process.
1. Soiled Dish Landing Table
This is the entry point. It needs to be large enough to accommodate multiple bus tubs and dish racks during peak hours without creating a dangerous pile-up. Look for heavy-duty stainless steel construction (14 or 16 gauge) for durability. Features like a raised marine edge prevent water from spilling onto the floor, and a trough or scrap block connected to a garbage disposal or waste bin makes the scraping process much cleaner and faster.
2. Pre-Rinse Station
Proper pre-rinsing is essential for an effective wash cycle. A high-pressure pre-rinse sprayer is non-negotiable; it efficiently removes heavy food debris, reducing the strain on your dishwasher and preventing its filters from clogging. This station is often integrated with a sink that has a basket drain to catch larger particles. For a top-tier ergonomic and efficient setup, consider a foot-pedal-operated faucet, which frees up the operator's hands and conserves water.
3. The Commercial Dishwasher: The Heart of the Operation
Choosing the right commercial dishwasher is the most significant decision you'll make for your warewashing station design. The choice depends entirely on your volume and space.
- Undercounter Dishwashers: Best for small cafes, bars, or satellite stations. They are compact but have a lower capacity (around 20-35 racks per hour).
- Door-Type / Pass-Thru Dishwashers: The workhorse for most small to medium-sized restaurants. They can handle a higher volume (around 40-90 racks per hour) and are designed to integrate seamlessly between the soiled and clean dish tables.
- Conveyor Dishwashers: The solution for high-volume operations like hotels, hospitals, and large restaurants. These machines automatically pull racks through wash, rinse, and sanitizing zones, capable of processing hundreds of racks per hour.
You also need to choose between high-temperature and low-temperature sanitizing models. High-temp machines use a booster heater to raise water to 180°F for sanitizing, which allows dishes to flash-dry quickly. Low-temp machines use chemical sanitizers and are more energy-efficient upfront but require ongoing chemical costs and may leave dishes wet.
4. Automated Chemical Dispensers
Never rely on manual pouring of detergents, rinse aids, or sanitizers. Automated dispensers are precise, ensuring the perfect amount of chemical is used in every cycle. This not only guarantees consistent, sanitary results but also enhances safety by minimizing staff contact with concentrated chemicals and prevents costly overuse of products.
5. Clean Dish Landing Table
Just as important as the soiled landing area, the clean side needs ample space. This table should be long enough to hold several racks of clean, hot dishes as they emerge from the machine. This space is crucial for allowing items to air-dry properly, which is a critical step in the sanitization process. Handling wet dishes can lead to recontamination.
6. Drying Racks and Storage Solutions
Once dishes are dry, they need a home. Wall-mounted shelving above the clean dish table is excellent for utilizing vertical space. Mobile dish caddies and glass rack dollies are essential for safely and efficiently transporting large quantities of clean items back to the kitchen line or front-of-house storage, reducing the number of trips and the risk of breakage.
Designing the Perfect Workflow: From Dirty to Clean
The success of your warewashing station hinges on a logical, uninterrupted workflow. The goal is to create a one-way street for dishes, eliminating any chance of clean and dirty items crossing paths. This is the foundation of an efficient dishwashing process.
The Linear Flow Principle
Whether you're working with a straight line, a corner U-shape, or an L-shape layout, the principle remains the same. The process must flow in a single direction. A typical, highly effective workflow looks like this:
- The Landing Zone (Dirty): Servers should have a clear, designated spot to drop off bus tubs, ideally close to the dining room exit to minimize their travel time. This area needs to be large enough to prevent tubs from being placed on the floor, which is a safety hazard.
- Sorting and Scraping: The operator sorts items—plates in one rack, glasses in another, silverware in soaking bins. They then scrape leftover food into a waste receptacle or garbage disposal. This station should be directly adjacent to the landing zone.
- Pre-Rinsing and Racking: After scraping, the racked dishes are moved to the pre-rinse sink where they are sprayed down to remove remaining sauces and debris. The sink should be positioned right next to the entrance of the dishwasher.
- Washing: The rack is pushed into the dishwasher. For a door-type machine, the operator simply slides the rack from the soiled table (pre-rinse area) into the machine, closes the door, and starts the cycle.
- The Clean Exit and Air-Drying: When the cycle is complete, the rack is pushed out the other side onto the clean landing table. It's crucial that this table is kept clear and is only used for sanitized items. The dishes are left in the rack to air dry completely.
- Storage and Return to Service: Once dry, the items are removed from the racks, stacked, and stored on nearby shelves or loaded onto carts for transport. The empty racks are then passed back to the dirty side of the station for the next load.
Ergonomics in Action: Protecting Your Most Valuable Asset
An efficient station is only truly successful if it's also an ergonomic warewashing station. Employee well-being should be a top priority in your design. A comfortable and safe employee is a productive and loyal one.
Work Surface and Equipment Height
The standard height for commercial kitchen work surfaces is 34-36 inches. This height minimizes the need for employees to bend over or stoop, which can cause significant back pain over a shift. Ensure your soiled and clean tables are at a comfortable working height. If possible, consider adjustable-height tables or platforms for employees of different statures.
Anti-Fatigue Mats
The floors in a dish room are hard and unforgiving. Providing high-quality anti-fatigue mats with drainage holes is one of the best investments you can make. These mats cushion the feet, legs, and back, reducing fatigue and pain from standing for long periods. The drainage holes are critical for keeping the standing surface dry and preventing slips.
Minimizing Reach and Movement
Design the station so that everything the operator needs is within easy reach. This is often called the "golden zone" or "strike zone." Chemicals, dish racks, and cleaning tools should be stored where they can be accessed without excessive bending, stretching, or twisting. The flow from scraping to racking to loading the machine should be a smooth, short series of movements, not a multi-step journey across the room.
Proper Lighting and Ventilation
A dish room can be a dark, steamy, and loud environment. Bright, targeted lighting is essential for safety and for spotting any remaining soil on dishes. A powerful ventilation and exhaust system is equally critical. It removes steam, which improves visibility and reduces the risk of mold growth, and it also vents chemical fumes, creating a healthier breathing environment for your staff.
Space and Layout Considerations for Your Commercial Kitchen
The ideal commercial kitchen dishwashing layout depends on the space you have available. The key is to apply the linear flow principle to your specific footprint.
Straight-Line Layout
This is the most efficient and intuitive layout. All components are arranged in a single line: soiled table, pre-rinse sink, dishwasher, clean table, and storage. This is perfect for kitchens with a long, narrow space to dedicate to warewashing. It makes the one-way workflow obvious and easy to follow.
Corner or U-Shaped Layout
When space is limited or square-shaped, a corner layout is a great solution. The soiled table and pre-rinse station can form one leg of the 'L' or 'U', with the dishwasher in the corner, and the clean table forming the other leg. This compact design can be very efficient as it minimizes the number of steps the operator needs to take. The key is to ensure there is still a clear separation between the dirty and clean sides.
Sizing Your Equipment for Peak Demand
Don't just guess how big your dishwasher needs to be. Perform a simple calculation. Estimate the maximum number of dishes you use during your busiest hour. A standard 20"x20" dish rack holds about 18 full-size plates. If you use 500 plates during your peak hour, you'll need to process approximately 28 racks per hour (500 / 18). Choose a machine with a capacity that comfortably exceeds this number to account for glassware, flatware, and unexpected rushes.
Pro Tips for Maintenance and Optimization
Your investment in a great warewashing station design doesn't end after installation. Proper maintenance and training are key to long-term success.
- Implement a Strict Cleaning Schedule: Your warewashing equipment must be cleaned daily. This includes draining the dishwasher, cleaning filters and spray arms, and wiping down all surfaces. A weekly and monthly schedule for more intensive tasks, like deliming the machine, is also crucial for performance and longevity.
- Train Your Staff Thoroughly: Don't assume anyone knows how to operate the station properly. Train every new employee on the correct workflow, how to properly scrape and load racks (don't overcrowd!), how the dishwasher works, and safe chemical handling procedures.
- Monitor Water Quality: Hard water can be devastating to a commercial dishwasher, causing limescale buildup that clogs components and leaves spots on your dishes. Test your water and invest in a water softener if necessary. It will extend the life of your equipment and improve your results dramatically.
- Choose the Right Chemicals: Work with a reputable chemical supplier to select the right detergent, rinse aid, and sanitizer for your specific machine, water hardness, and soil levels. Using the wrong products can lead to poor results and even damage your equipment.
Conclusion: The Foundation of a Flawless Operation
A well-executed warewashing station design is far more than just a place to clean dishes. It is the backbone of your kitchen's workflow, a critical control point for sanitation, a key factor in your operational budget, and a direct influence on your employees' daily experience. By investing time and resources into planning an efficient and ergonomic layout, you are making a strategic decision that pays dividends in every aspect of your food service business. From the speed of service to the safety of your staff and the satisfaction of your customers, the path to a flawless operation begins in a well-designed dish pit. Start planning your ideal restaurant dish pit setup today and transform your kitchen's most critical support system into a true competitive advantage.
