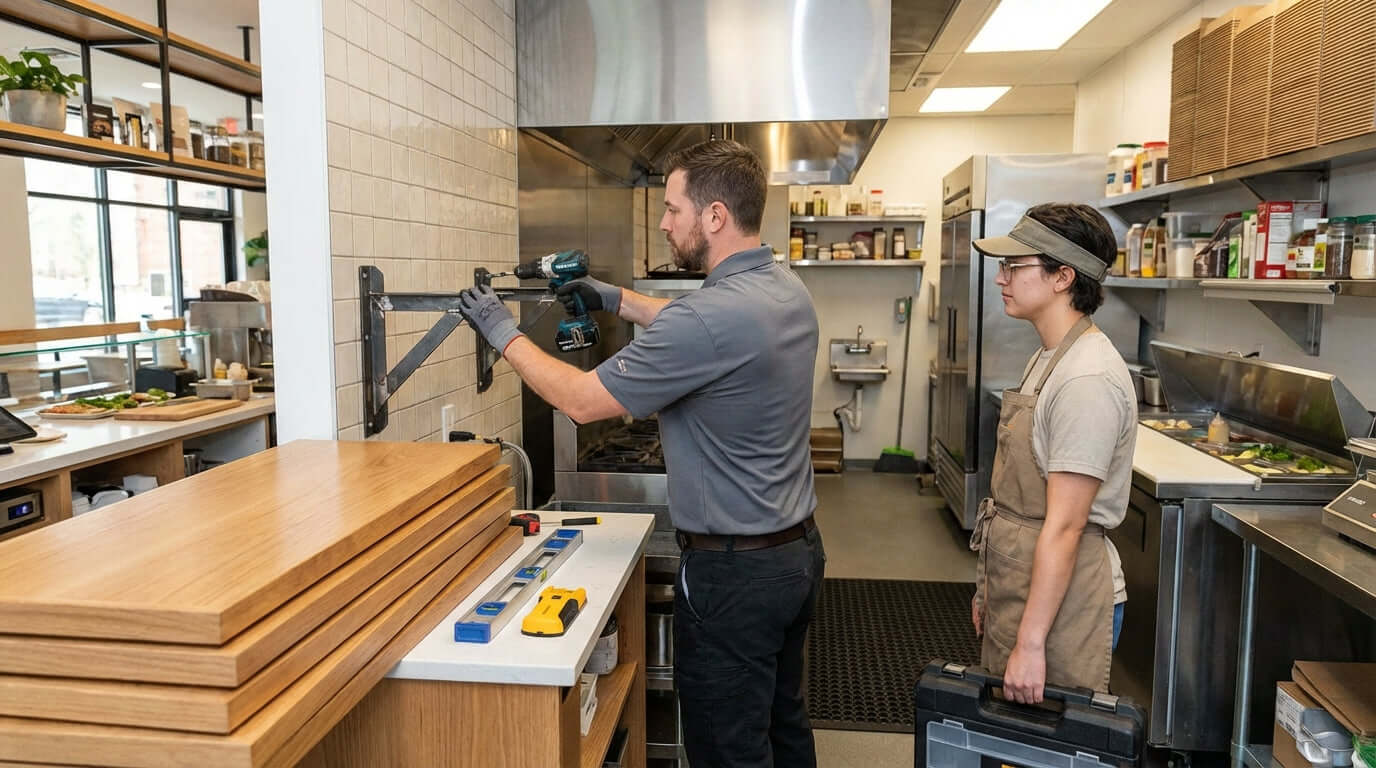

A Professional's Guide: How to Safely Install Heavy-Duty Wall Shelves for Your Business
In the fast-paced world of food services and retail merchandise, space is a premium commodity. Every square foot of your commercial kitchen, stockroom, or sales floor must be optimized for efficiency, safety, and productivity. This is where vertical storage comes into play, and nothing beats the utility of robust, heavy-duty wall shelves. However, the value of these shelves is directly tied to their installation. A poorly mounted shelf is not just an inconvenience; it's a significant safety hazard, a risk to valuable inventory, and a potential code violation that can damage your business's reputation and bottom line. From commercial kitchen shelving holding hefty containers of ingredients to retail merchandise shelving displaying your products, the integrity of the installation is paramount.
This comprehensive guide is designed for business owners, managers, and facilities staff in the food services and merchandise industries. We will walk you through the professional, step-by-step process of planning for and executing a secure wall shelf mounting. Following these instructions will ensure your heavy-duty wall shelves are a long-lasting, reliable asset rather than a liability, empowering you to maximize your space with confidence and peace of mind.
Before You Begin: The Crucial Planning & Preparation Phase
Success in any practical task lies in the preparation. Before you even pick up a drill, a thoughtful planning phase will save you time, prevent costly mistakes, and guarantee a safe, professional-quality result. This is the most critical stage of your heavy-duty wall shelves installation.
Why Heavy-Duty Shelving is a Non-Negotiable for Your Business
Consumer-grade shelving from a big-box store simply won't cut it in a commercial environment. The demands are entirely different. Heavy-duty commercial shelving is engineered for superior performance, durability, and safety. For restaurant wall storage, this means selecting NSF-certified stainless steel shelves that can withstand the rigors of a hot, humid kitchen, support immense weight from bulk food containers or equipment, and be easily sanitized to meet health codes. In a retail setting, robust shelving must safely hold stacks of dense merchandise like canned goods, books, or automotive parts without bowing or failing. The key is understanding load capacity—always choose shelving rated well above your maximum anticipated weight to build in a crucial safety margin.
Choosing the Right Location: Strategy and Structure
Where you install your shelves is just as important as how you install them. Consider these factors:
- Workflow and Ergonomics: Position shelves to enhance, not hinder, your daily operations. In a kitchen, place them near prep stations for easy access to frequently used ingredients. In a stockroom, create logical aisles that allow for efficient order picking. Ensure shelves are not placed in a way that obstructs pathways or creates a head-bumping hazard.
-
Wall Assessment: Not all walls are created equal. The structural integrity of your wall is the foundation of a secure installation. You must identify the wall type you're working with:
- Drywall over Wood Studs: The most common interior wall type. Locating and anchoring into the wooden studs is the gold standard for strength.
- Concrete or Cinder Block: Extremely strong and ideal for heavy loads, but requires specialized masonry anchors and a hammer drill.
- Brick: Similar to concrete, provides a very secure mounting point with the correct masonry hardware.
- Plaster and Lath: Found in older buildings, it can be brittle and requires careful drilling and specific types of anchors.
- Measuring and Marking: Adopt the carpenter's mantra: "Measure twice, cut once." Decide on the optimal height for your shelves. Use a tape measure and a level to mark a perfectly horizontal guideline for the top or bottom of your brackets. Plan the vertical spacing between shelves to accommodate the specific items you'll be storing, leaving a little extra room for ease of access.
Gathering Your Tools and Materials
Having everything you need on hand before you start will make the process smooth and efficient. A disorganized search for a tool mid-installation is a recipe for frustration and error. Here is your essential checklist:
- The Shelving Kit: Your heavy-duty shelf platforms and the corresponding high-capacity mounting brackets.
- High-Quality Electronic Stud Finder: An indispensable tool for locating the center of wood studs behind drywall. Don't rely on guesswork.
- Level: A 4-foot spirit level is ideal for accuracy over long spans, but a 2-foot level will also work. A laser level can be a huge time-saver for installing multiple shelves.
- Tape Measure and Pencil: For precise marking.
- Power Drill/Driver: A powerful corded or high-voltage cordless drill is necessary. A hammer drill function is required for masonry walls.
- Appropriate Drill Bits: A set of wood bits and a set of masonry bits. The size will depend on the hardware you are using.
- Socket Wrench Set or Impact Driver: Essential for driving heavy-duty lag bolts securely. A simple screwdriver will not provide enough torque.
- Safety Equipment: Safety goggles are non-negotiable to protect your eyes from dust and debris. Work gloves are also recommended.
-
The Correct Hardware: This is critical. Do NOT use the standard screws that may come with consumer-grade kits. For heavy-duty applications, you need specific fasteners:
- For Wood Studs: 1/4" or 5/16" diameter lag bolts. The length should be sufficient to penetrate at least 1.5 inches into the stud.
- For Concrete/Brick: Heavy-duty sleeve anchors or concrete screws (e.g., Tapcon).
- For Hollow Walls (Last Resort): If mounting between studs is unavoidable for a lighter-duty shelf, use high-capacity snap toggles or toggle bolts. Never rely on these for true heavy-duty commercial kitchen shelving.
The Step-by-Step Installation Process: A Detailed Walkthrough
With your planning complete and tools assembled, it's time for the installation. Follow these steps methodically for a secure and professional result.
Step 1: Locate and Mark the Wall Studs
For any installation into drywall, this is the most crucial step for achieving a secure wall shelf mounting. Wall studs are the vertical wooden beams that make up the frame of your wall. Anchoring into this solid wood is the only way to support significant weight. Slide your electronic stud finder slowly across the wall at the approximate height of your installation. The device will beep or light up when it detects a stud. Mark the left and right edges, then find the center point and make a clear vertical mark. Most studs are spaced 16 inches or 24 inches apart on-center. Confirm the locations of several studs to establish the pattern.
Step 2: Mark Your Bracket Positions
Use your level and pencil to draw a faint, perfectly horizontal line across the wall where the top of your mounting brackets will sit. Hold your first bracket against the wall, ensuring it is centered over your marked stud and its top edge is aligned with your horizontal guideline. Use your pencil to mark the center of each mounting hole in the bracket directly onto the wall. Repeat this process for all subsequent brackets, double-checking with your level that your marks for each bracket are perfectly aligned horizontally. The spacing between brackets will be determined by your shelf length and the stud locations (e.g., 32 inches apart for studs 16 inches on-center).
Step 3: Drill Pilot Holes
Drilling a pilot hole before driving a large lag bolt is essential. It prevents the wood stud from splitting under pressure and makes it significantly easier to drive the bolt in straight. Select a drill bit that is slightly smaller than the diameter of your lag bolt's shaft (not including the threads). For a 1/4" lag bolt, a 3/16" bit is typically appropriate. Drill a straight, clean hole at each of your marked points, ensuring you drill deep enough to accommodate the full length of the bolt.
Step 4: Secure the Brackets to the Wall
This is where the structure comes together. Position your first bracket over the pilot holes. Place a washer over a lag bolt, insert it through the bracket's mounting hole, and hand-tighten it into the pilot hole. Use your socket wrench or impact driver to drive the bolt in until the washer is snug against the bracket. The bracket should be completely firm with no movement. Do not overtighten, as this can strip the wood inside the stud or damage the drywall. Repeat for all bolts on all brackets. Once all brackets are mounted, place your level across the top of them one last time to confirm they are perfectly aligned.
Special Section: Mounting on Masonry (Concrete/Brick)
If you are installing on a concrete or brick wall, the process is slightly different. After marking your holes (Step 2), you'll use a hammer drill fitted with a masonry bit that matches the diameter of your chosen sleeve anchor. Drill a hole to the specified depth for the anchor. Clean out the dust and debris from the hole thoroughly (a vacuum or can of compressed air works well). Tap the sleeve anchor into the hole until it is flush. Position the bracket, insert the bolt through it and into the anchor, and tighten. As you tighten, the sleeve expands inside the wall, creating an incredibly strong friction hold. This method is ideal for commercial kitchen shelving that needs to hold extreme weight.
Step 5: Attach the Shelves
Carefully place the shelf platform onto the now securely mounted brackets. It should sit flat and flush against the wall. Most shelving systems will have pre-drilled holes on the underside that align with holes in the brackets. Use the smaller screws provided with your kit to fasten the shelf to the brackets. This crucial step prevents the shelf from tipping or sliding off.
Step 6: Test the Installation
Before you start loading your new restaurant wall storage with hundreds of pounds of inventory, perform a final safety check. Apply firm, steady downward pressure along the length of the shelf, especially in the middle, between brackets. Watch the mounting points closely for any sign of pulling, shifting, or straining. The shelf and brackets should feel completely solid and immovable. If you detect any wobble or give, stop immediately. Re-check the tightness of every lag bolt or anchor. A secure installation will have zero play.
Post-Installation: Maintenance and Safety Best Practices
Your job isn't quite done. Proper use and maintenance are key to ensuring the long-term safety and reliability of your heavy-duty wall shelves.
Weight Distribution is Key
Never exceed the manufacturer's stated weight capacity. This capacity assumes an evenly distributed load. To maximize stability, always place heavier items closer to the wall and directly over the brackets. Lighter items can be placed towards the front and in the center of the shelf. Avoid concentrating a massive amount of weight in one small spot, especially in the middle of the span between brackets.
Regular Inspections
In a busy commercial environment, vibrations and constant use can potentially loosen hardware over time. Institute a simple monthly or quarterly inspection protocol. Have a staff member visually check each shelf installation for any signs of sagging, brackets pulling away from the wall, or loose bolts. A quick check with a wrench can ensure everything remains tight and secure. This proactive approach is a cornerstone of workplace safety.
Cleaning and Care
Proper cleaning is essential, especially for food services. For the stainless steel commercial kitchen shelving, use non-chloride, non-abrasive cleaners to maintain the passive layer that prevents rust and corrosion. Regular cleaning also ensures you meet health code standards. For retail merchandise shelving, regular dusting and cleaning maintain a professional appearance that reflects well on your brand.
Common Mistakes to Avoid When Installing Heavy-Duty Shelving
Steer clear of these common pitfalls to ensure a successful installation:
- Ignoring Wall Studs: Attempting to mount heavy-duty shelves using only drywall anchors is the single biggest and most dangerous mistake. They will fail.
- Using the Wrong Hardware: Using drywall screws instead of lag bolts or the incorrect type of anchor for your wall material is a guarantee of future failure.
- Not Using a Level: Shelves that aren't level are not only unprofessional-looking but can also lead to uneven weight distribution and potential instability.
- Over-Tightening Bolts: Cranking down too hard can strip the wood in the stud or crack the wall, compromising the anchor point's integrity. Snug and secure is the goal.
- Forgetting Pilot Holes: This can lead to split studs, which severely weakens the wood's holding power.
- Exceeding the Load Capacity: Always respect the limits of your shelving. Overloading is a direct path to catastrophic failure.
Conclusion: A Foundation for Efficiency and Safety
Properly installed heavy-duty wall shelves are more than just storage; they are a strategic investment in the efficiency, organization, and safety of your business. By taking the time to plan meticulously, use the correct tools and hardware, and follow a precise installation process, you create a reliable foundation for your inventory and operations. Whether it's organizing a bustling commercial kitchen or maximizing your retail floor space, a secure wall shelf mounting provides the support your business needs to thrive. This guide empowers you to complete the task with the professionalism it deserves, ensuring your shelves serve you safely and effectively for years to come.
