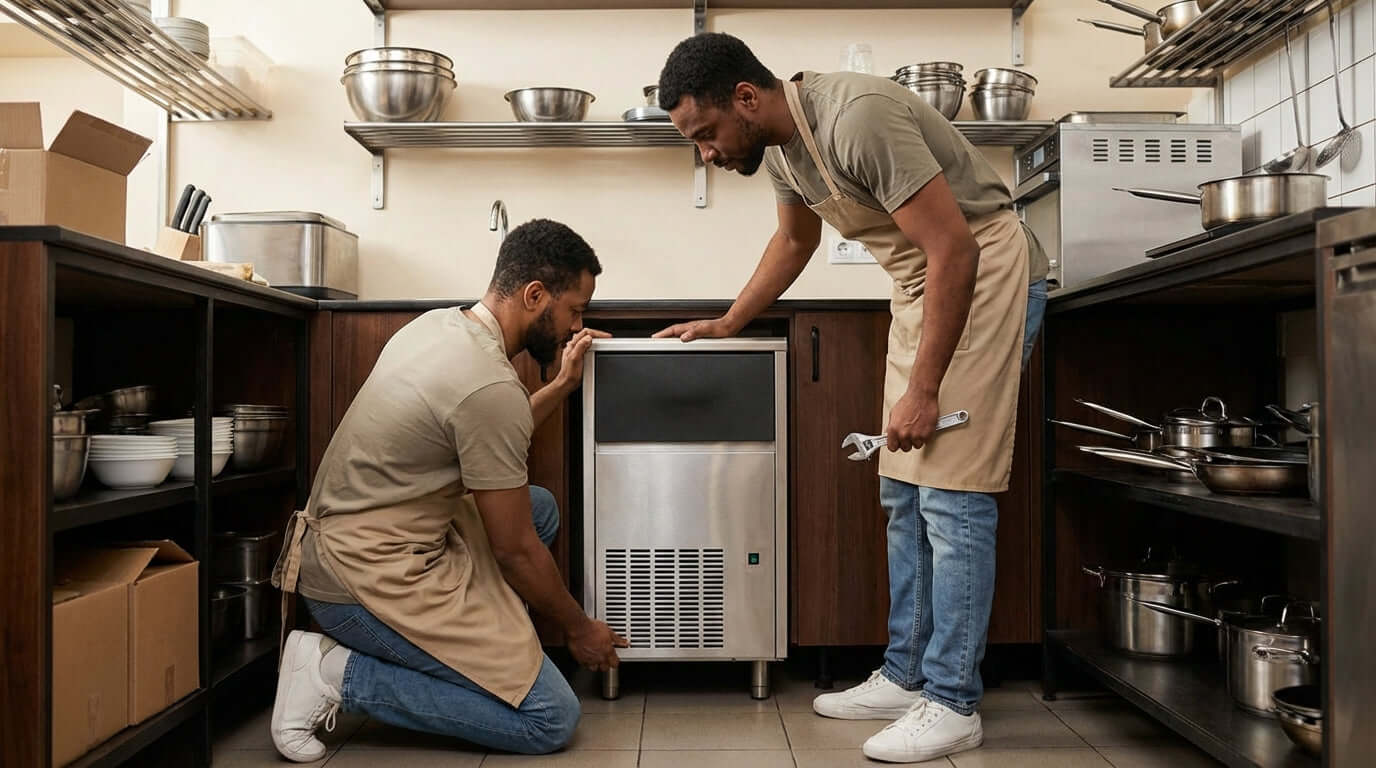

5 Common Installation Mistakes to Avoid with Your Undercounter Ice Maker

Avoid Costly Repairs: 5 Critical Undercounter Ice Maker Installation Mistakes

An undercounter ice maker is a game-changing addition to any commercial food service establishment. For bars, cafes, restaurants, and hotels, it represents a constant, reliable source of clean, fresh ice—the lifeblood of countless beverages and culinary applications. The excitement of unboxing this powerful piece of equipment can be immense, promising efficiency and elevated customer service. However, that excitement can quickly turn to frustration and financial loss if the installation process is rushed or mishandled. Proper undercounter ice maker installation is not merely about plugging it in; it's a precise process that directly impacts the machine's performance, energy consumption, and lifespan.

Unfortunately, many of the service calls and warranty claims for new ice machines stem from a handful of common, and entirely preventable, installation errors. These mistakes can lead to a cascade of problems, from poor ice quality and reduced production to catastrophic component failure. To protect your investment and ensure your new machine operates at peak performance from day one, it's crucial to understand these pitfalls. This comprehensive guide will walk you through the five most common installation mistakes to avoid, providing the expert insights you need for a flawless commercial ice maker setup.

Mistake #1: Neglecting Proper Ventilation and Airflow

Perhaps the single most critical and frequently overlooked aspect of undercounter ice maker installation is ventilation. An ice machine is, at its core, a refrigeration unit. It works by removing heat from water to freeze it, and that extracted heat must be exhausted away from the unit. If this heat cannot escape, the machine is forced to work exponentially harder, leading to a host of serious problems.

Why Ventilation is Non-Negotiable

The refrigeration cycle involves a compressor, condenser coils, and a fan. The fan pulls ambient air across the condenser coils to dissipate the heat generated by the compressor. When an ice maker is installed in a tight enclosure without adequate clearance, this process is severely hampered. The unit begins to recirculate its own hot exhaust air, causing the internal temperature to skyrocket. The compressor must then run continuously in a futile attempt to cool down, leading to extreme stress on the entire system.

The Consequences of Poor Airflow

• Reduced Ice Production: An overheating machine cannot efficiently freeze water. You'll notice a significant drop in the quantity of ice produced, falling far short of the manufacturer's stated capacity.
• Skyrocketing Energy Bills: A compressor that runs constantly consumes a massive amount of electricity. Improper ventilation can easily double the unit's energy consumption, negating any efficiency ratings it may have.
• Premature Component Failure: The immense strain on the compressor, fan motor, and other electrical components will drastically shorten their lifespan, leading to expensive, premature repairs.
• Voided Warranty: Manufacturers are well aware of this issue. Evidence of failure due to improper ventilation (often called a "heat-related failure") is one of the most common reasons for a voided warranty, leaving you to foot the entire bill for a new compressor or even a new unit.

How to Do It Right

The solution is simple: give your machine room to breathe. Before installation, read the manufacturer's specification sheet and installation manual religiously. It will clearly state the minimum clearance requirements for the top, back, and sides of the unit. These are not suggestions; they are absolute minimums.

• Front-Breathing vs. Rear/Side-Breathing Models: Understand your unit's design. Most modern undercounter ice makers are "front-breathing," meaning their air intake and exhaust vents are located on the front grille at the bottom. This design is ideal for true built-in applications, as it allows for zero clearance on the sides and back. However, you must never obstruct this front grille. Avoid placing mats in front of it or allowing debris to accumulate there.
• Rear/Side-Breathing Models: Older or less expensive models may draw air in from the sides or back and exhaust it elsewhere. These units require significant open space around them, typically 4-6 inches on all sides, and are not suitable for being fully enclosed in cabinetry without extensive custom ventilation being built into the surrounding structure.

Mistake #2: Botching the Water Supply and Filtration

The quality of your ice is directly determined by the quality of the water you feed into the machine. Errors in the plumbing and filtration stage not only result in cloudy, bad-tasting ice but can also inflict severe, irreversible damage to the machine's internal components.

Sub-Mistake 2A: Improper Water Line Connection

The water line is the artery of your ice maker. A weak or poorly installed line is a leak waiting to happen. A common DIY error is the use of a self-piercing saddle valve. These valves clamp onto an existing copper pipe and pierce it with a small needle to create a water source. While they may seem convenient, they are notoriously unreliable, prone to leaking, and often violate local plumbing codes. Furthermore, the small hole they create can easily become clogged with mineral deposits.

Best Practices for Your Water Line:

• Use a Dedicated Shut-Off Valve: Install a proper quarter-turn ball valve on a cold water line. This provides a reliable, full-flow connection and allows you to easily shut off the water for maintenance.
• Choose the Right Tubing: Use either 1/4" or 3/8" OD copper tubing or braided stainless steel tubing designed for ice makers. Avoid cheap plastic tubing that can become brittle and crack over time.
• Check Water Pressure: Your machine's manual will specify a required water pressure range, typically between 20 and 80 PSI. Pressure that is too low will result in thin or incomplete ice slabs, while pressure that is too high can damage the water inlet valve. Use a pressure gauge to test your line and install a pressure regulator if needed.

Sub-Mistake 2B: Skipping or Using the Wrong Water Filter

Water from the tap contains dissolved minerals (like calcium and magnesium), sediment, and chemicals like chlorine. When water freezes, these impurities are left behind, forming a hard, crusty deposit known as scale. Installing an ice maker without a proper water filter, especially in a hard water area, is a recipe for disaster.

The Devastating Effects of Scale:

• Poor Ice Quality: Scale buildup leads to cloudy, soft, and bad-tasting ice that melts quickly and can ruin the flavor of a beverage.
• Component Damage: Scale clogs water lines, solenoid valves, and distribution tubes. Most critically, it forms an insulating layer on the evaporator plate (the grid where ice forms), forcing the machine to run much longer to freeze water, causing extreme wear and tear.
• Costly Maintenance: Removing heavy scale buildup requires a difficult and time-consuming descaling procedure using harsh chemicals. If neglected, it can permanently damage the machine.

Your Filtration Solution:

An external water filter is not an optional accessory; it's a mandatory component of any commercial ice maker setup. Invest in a high-quality commercial-grade filter system that is specifically designed for ice machines. Look for a system that includes both sediment and carbon filtration to remove particles and chemicals, and most importantly, a scale inhibitor (like polyphosphate) to prevent minerals from sticking to internal components. This small upfront investment will pay for itself many times over in reduced maintenance and extended equipment life.

Mistake #3: Overlooking the Critical Drain Line

Every ice maker needs to drain excess water from the ice-making cycle and meltwater from the storage bin. A properly installed drain line is essential for sanitation, preventing leaks, and avoiding water damage. There are two primary types of drains—gravity drains and drain pumps—and both have their own set of common installation errors.

Gravity Drain Errors

A gravity drain relies on, you guessed it, gravity to carry water away. This requires a direct, downward path from the ice machine's drain outlet to a floor drain or standpipe.

Common Gravity Drain Mistakes:

• Insufficient Slope: The drain line must have a consistent downward slope of at least 1/4 inch per foot of horizontal run. A flat or upward-sloping line will cause water to sit in the tube, creating a breeding ground for slime, mold, and bacteria that can back up into your ice bin, creating a major health code violation.
• No Air Gap: This is a critical food safety requirement. The end of the drain tube must never be inserted directly into the floor drain or standpipe. There must be an air gap of at least 1-2 inches between the end of the tube and the top of the drain. This gap prevents sewage and bacteria from the floor drain from being siphoned back into the ice machine.
• Kinks and Loops: Ensure the drain tubing is run as straight as possible, avoiding any sharp bends or loops that can trap water and debris.

Condensate Pump Mismanagement

If a suitable floor drain is not available or is located higher than the unit's drain outlet, you will need to install a condensate pump. This small box collects the drain water and then actively pumps it up and away to a distant drain, like a utility sink.

Common Drain Pump Mistakes:

• Incorrect Sizing: Choosing a pump that isn't powerful enough for the distance or height it needs to pump can lead to pump failure and water backup.
• Ignoring Maintenance: The pump's reservoir can accumulate slime and debris, which can clog the float switch and cause it to either fail to turn on (causing a flood) or fail to turn off (burning out the pump motor). The pump must be cleaned regularly as part of your maintenance schedule.

Mistake #4: Making Unsafe Electrical Connections

Electricity and water are a dangerous combination, and an ice maker involves both. Electrical mistakes are not just a threat to your equipment; they are a serious fire and safety hazard. Unless you are a qualified and licensed electrician, this part of the installation is best left to a professional.

The Cardinal Sins of Electrical Installation

• Using an Extension Cord: Never, under any circumstances, should a commercial ice maker be plugged into an extension cord. Standard extension cords are not rated for the continuous high amperage draw of an ice machine's compressor. They can overheat, melt, and cause a fire. Using one will also instantly void your warranty.
• Sharing a Circuit: Your undercounter ice maker must be on a dedicated circuit. This means it has its own circuit breaker in your electrical panel that serves no other outlets or appliances. Plugging it into a circuit shared with a blender, microwave, or other equipment will lead to frequent breaker trips and voltage drops that can damage the ice maker's sensitive electronics.
• Ignoring Grounding and GFCI: The machine must be plugged into a properly grounded (three-prong) outlet. Depending on local codes and the unit's proximity to a water source, a Ground Fault Circuit Interrupter (GFCI) outlet may be required to protect against electrical shock.

How to Ensure Electrical Safety

Consult the machine's data plate or manual to find its exact voltage and amperage requirements. Hire a licensed electrician to install a dedicated circuit and outlet that matches these specifications precisely. This is a small price to pay for the safety of your staff, your property, and your expensive new equipment.

Mistake #5: Skipping the Basics: Leveling and the Instruction Manual

Amidst the complexities of plumbing and wiring, it's easy to overlook the two most fundamental steps of any appliance installation: leveling the unit and reading the manual. Skipping these basics can undermine all your other efforts.

The Importance of a Level Foundation

An ice maker that isn't perfectly level will not function correctly. The ice-making process depends on water flowing evenly over the evaporator plate. If the unit is tilted, water distribution will be uneven, resulting in misshapen, incomplete, or hollow ice cubes. Furthermore, an unlevel unit can cause the bin door to not seal properly, leading to faster melting and increased energy consumption. It can also put undue stress on the frame and internal components, causing vibrations and noise.

The Simple Fix:

Use a spirit level to check the unit from front-to-back and side-to-side. Adjust the threaded leveling legs at the bottom of the machine until it is perfectly level in all directions. It's a five-minute job that prevents a dozen potential problems.

The Cardinal Sin: Ignoring the Manufacturer's Manual

This final mistake is the one that often leads to all the others. The instruction manual that came with your undercounter ice maker is the single most important document for a successful installation. It was written by the engineers who designed the machine. It contains the exact, model-specific details you need for:

• Clearance and ventilation requirements
• Water pressure and temperature specifications
• Electrical voltage and amperage ratings
• Drainage requirements
• Initial startup procedures
• Maintenance schedules

Different brands like Hoshizaki, Manitowoc, Scotsman, and U-Line all have unique specifications. Assuming a one-size-fits-all approach is a recipe for failure. Before you cut a single pipe or plug in a single cord, sit down and read the manual from cover to cover.

Conclusion: A Successful Installation is a Professional Installation

Properly installing your undercounter ice maker is the first and most important step in ensuring it has a long, productive, and efficient life. By avoiding these five common mistakes—neglecting ventilation, botching the water and drain lines, making unsafe electrical connections, and skipping the basics of leveling and reading the manual—you can safeguard your investment and enjoy a trouble-free supply of quality ice.

While this guide provides a detailed overview, every installation has its unique challenges. The complexities of commercial plumbing and electrical codes, combined with the high value of the equipment, mean that the wisest choice is often to hire a certified professional. A qualified refrigeration technician or commercial appliance installer has the tools, knowledge, and experience to get the job done right the first time, ensuring your machine operates safely, efficiently, and in full compliance with its warranty. Don't let a simple installation mistake turn your valuable new asset into a costly liability.
