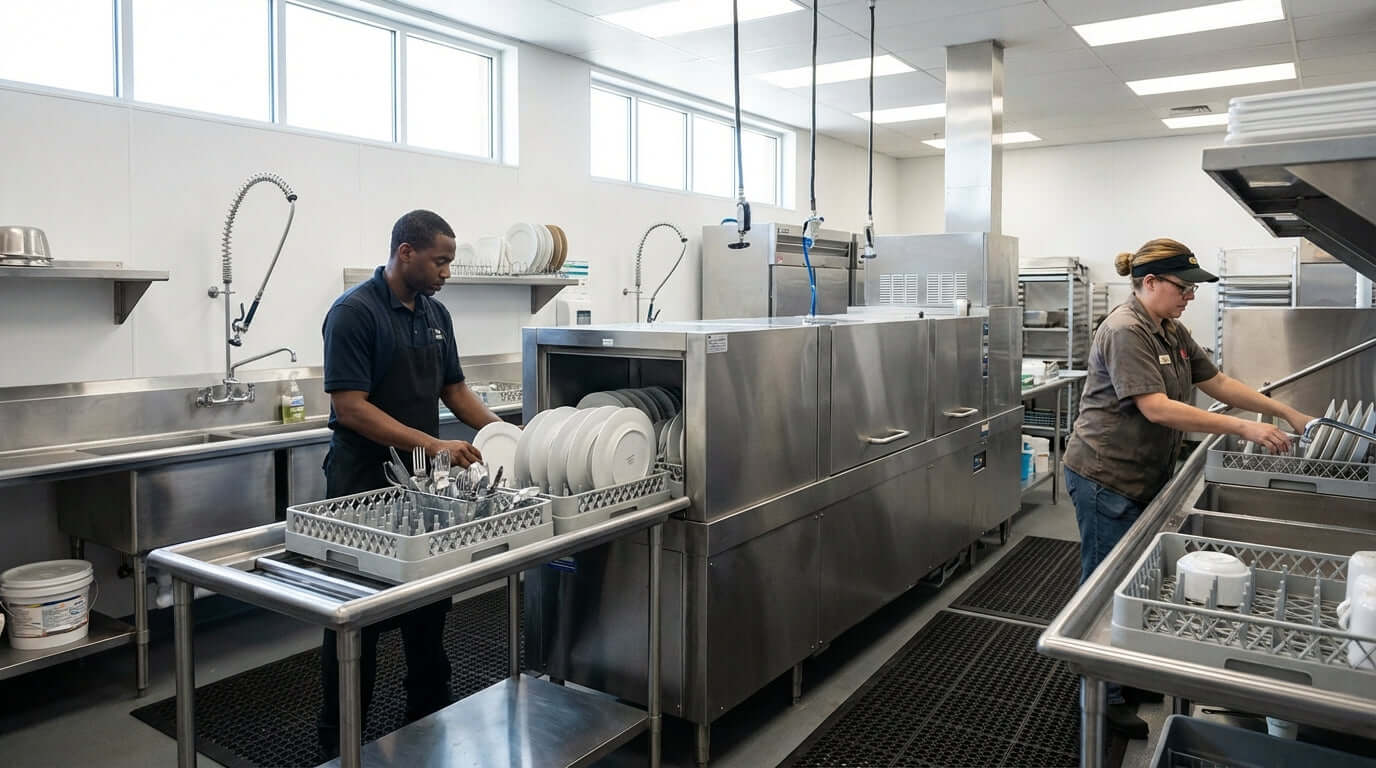

Designing the Perfect Warewashing Station: A Guide to Seamless Workflow with Conveyor Dishwashers
In the high-octane world of food service, the warewashing station is the unsung hero, the critical engine room that keeps the entire operation running smoothly. While the sizzle of the grill and the artistry of the plating line often steal the spotlight, a poorly designed dish pit can bring even the most acclaimed kitchen to a grinding halt. Bottlenecks, sanitation risks, staff frustration, and costly delays are the direct result of an inefficient warewashing process. Conversely, a thoughtfully designed station, built around the power and efficiency of a conveyor dishwasher, is a cornerstone of profitability, safety, and operational excellence.
This comprehensive guide will walk you through the essential principles of designing the perfect warewashing station. We'll explore the critical role of workflow, the anatomy of an ideal layout, how to select the right conveyor dishwasher, and the best practices that transform your dish pit from a chaotic bottleneck into a streamlined powerhouse. Whether you're building a new commercial kitchen or renovating an existing one, understanding these fundamentals is a non-negotiable investment in your success.
Why an Efficient Warewashing Station is a Game-Changer
Before diving into the nuts and bolts of design, it's crucial to appreciate the far-reaching impact of an optimized warewashing area. It’s about much more than just cleaning plates; it’s about supporting the entire service cycle.
- Upholding Hygiene and Food Safety: This is the most critical function. A proper workflow, with clear separation between soiled and clean zones, is your first line of defense against cross-contamination. An efficient system ensures that every dish, glass, and piece of cutlery is washed, rinsed, and sanitized to the highest health code standards, protecting your customers and your reputation.
- Maximizing Operational Efficiency: When the dish pit is backed up, the entire restaurant suffers. Chefs run out of pans, servers run out of plates, and bartenders run out of glasses. This leads to slower service, longer ticket times, and frustrated customers. A seamless workflow ensures a constant supply of clean wares, enabling faster table turnover and a smoother front-of-house and back-of-house operation.
- Reducing Labor Costs and Improving Staff Morale: A chaotic, poorly designed dishwashing area is physically demanding and mentally draining. Staff members waste time and energy navigating a cluttered space, leading to burnout and high turnover. A logical, ergonomic workflow reduces physical strain, minimizes unnecessary steps, and allows a smaller, more focused team to handle high volumes effectively, directly impacting your bottom line.
- Controlling Utility and Supply Costs: Modern conveyor dishwashers, especially ENERGY STAR® rated models, are engineered for efficiency. When paired with a smart layout and proper pre-rinsing techniques, they significantly reduce water, energy, and chemical consumption. This not only lowers your monthly utility bills but also supports your business’s sustainability goals.
- Protecting Your Dinnerware Investment: Haphazard stacking and handling in a cramped space lead to chips, cracks, and breakage. An organized station with proper racking and landing areas minimizes this risk, extending the life of your expensive plates, glassware, and flatware.
The Heart of the Operation: Choosing the Right Conveyor Dishwasher
The conveyor dishwasher is the engine of your high-volume warewashing station. Unlike door-type or undercounter models, conveyor systems are designed for continuous operation, capable of processing hundreds of racks per hour. The choice of machine dictates many aspects of your station's design.
Types of Conveyor Dishwashers
- Rack Conveyor: This is the most common type. Staff load soiled dishes into standard 20"x20" racks, which are then placed onto the conveyor belt to be pulled through the pre-wash, wash, rinse, and sanitizing zones. They are versatile and ideal for most high-volume restaurants, hotels, and institutions.
- Flight-Type (or Belt Conveyor): These are larger, more powerful machines where dishes, trays, and cutlery are placed directly onto a wide, peg-style belt, eliminating the need for racks. Flight-type dishwashers are best suited for extremely high-volume operations like large hospitals, universities, convention centers, and airports where thousands of meals are served in a short period.
Caractéristiques clés à considérer
- Sanitizing Method: High-temperature machines use a booster heater to raise the final rinse water to 180°F (82°C) to sanitize dishes. Low-temperature machines use chemical sanitizers in the final rinse. High-temp models offer faster drying times due to the residual heat, while low-temp models often have lower upfront and energy costs but require ongoing chemical purchases.
- Energy and Water Efficiency: Always look for the ENERGY STAR® certification. These models can save thousands of gallons of water and significant energy costs over their lifespan. Features like heat recovery systems, which capture steam to pre-heat incoming water, offer even greater savings.
- Wash Zones: A multi-stage cleaning process is essential. A standard configuration includes a pre-wash zone to remove heavy soil, a power wash zone with high-pressure jets, a power rinse zone, and a final sanitizing rinse zone. More advanced models may offer additional stages for superior results.
- Direction of Operation: Conveyor dishwashers can be configured for left-to-right or right-to-left operation. This choice is critical and must be determined by your available space and desired workflow before purchasing.
The Anatomy of a Perfect Warewashing Workflow: The 5-Zone System
The most effective restaurant dishwashing station setup is organized as a logical, one-way progression. This assembly-line approach minimizes wasted motion and, most importantly, prevents cross-contamination by keeping soiled items from ever crossing paths with clean ones. This is best achieved with a five-zone system.
Zone 1: The Landing & Sorting Area (The "Soiled" Zone)
This is where the journey begins. Dirty dishes arrive from the dining room via bus tubs or carts. The primary goal here is organization before cleaning.
- Design & Equipment: This zone requires a large stainless steel soiled dish table with a raised lip to contain spills. It should be spacious enough to accommodate several bus tubs without creating a logjam. Position large, easily accessible trash receptacles nearby, ideally with a liquid-funnel top to separate liquids from solid waste. A dedicated glass rack return area is also essential to prevent breakage.
- Workflow: Staff empty bus tubs onto the table, sorting wares by type—plates with plates, glassware with glassware, and flatware into presoak tubs. This initial sort makes the subsequent steps much faster and more efficient.
Zone 2: The Pre-Rinse & Scrapping Station
This is arguably the most important step for ensuring your dishwasher performs optimally. The goal is to remove all large food debris before items are racked.
- Design & Equipment: This station is adjacent to the sorting area. The key piece of equipment is a high-pressure pre-rinse sprayer. Modern, water-efficient models are a must. The sink basin should have a scrap basket to catch debris. For higher-volume operations, a trough-style scrap collector or a garbage disposal (check local regulations) integrated into the dish table is highly effective. A flatware presoak sink or container with a specialized solution is also located here.
- Workflow: After sorting, staff scrape solid food waste into the trash or disposal. Each item is then thoroughly sprayed with the pre-rinse faucet to remove remaining sauces and particles. Properly pre-rinsed dishes are then placed into the appropriate dish racks. Failure to do this step properly forces the dishwasher to work harder, results in dirty water, and can lead to re-washing, killing efficiency.
Zone 3: The Loading & Washing Station (The Conveyor Dishwasher)
This zone is where the magic happens. The correctly racked and pre-rinsed dishes are fed into the commercial dishwasher for their automated cleaning and sanitizing cycle.
- Design & Equipment: The entrance of the conveyor dishwasher should be seamlessly connected to the soiled dish table from the pre-rinse station. There should be a small section of roller table or staging space for one or two racks to queue up, ensuring a continuous feed into the machine.
- Workflow: The operator slides the full racks onto the conveyor. It's crucial to train staff on proper loading techniques—don't overcrowd racks, face all dishes in the same direction, and ensure nothing is blocking the spray arms. The machine then takes over, pulling the rack through its internal wash and rinse cycles.
Zone 4: The Unloading & Drying Area (The "Clean" Zone)
As racks exit the dishwasher, they land in this strictly designated clean zone. Proper handling here is critical to maintain sanitation.
- Design & Equipment: This zone must feature a long, clean stainless steel dish table, often called a landing table or run-off table. The length is important; it must be long enough to hold several racks as they emerge, allowing them to air-dry. Air drying is the preferred method in commercial kitchens, as towel drying can reintroduce bacteria.
- Workflow: An operator removes the hot, clean racks from the machine's exit and places them on the landing table. They should be left untouched for a few minutes to allow the residual heat (especially from high-temp machines) to evaporate the water. This is a critical food safety step. The area must be kept clear of any soiled items.
Zone 5: The Storage & Staging Area
The final stop. Once dishes are completely dry, they need to be stored safely and efficiently for their return to service.
- Design & Equipment: This area should feature a mix of storage solutions. Wall-mounted shelving above the clean dish table is excellent for plates. Mobile dish caddies and glass rack dollies are essential for transporting large quantities of wares back to the kitchen line or server stations without excessive handling.
- Workflow: Once dry, staff carefully unrack the dishes and stack them on the appropriate shelves or caddies. The empty racks are then returned to the soiled side of the station to be reused. This constant circulation of racks is key to the system's efficiency. The flow must be designed so that staff returning empty racks do not have to cross into the clean zone.
Layout Configurations: Linear vs. U-Shaped Designs
The physical arrangement of your five zones is dictated by the space available. The two most common and effective commercial warewashing station layouts are the straight-line and the U-shaped design.
Linear / Straight-Line Layout
As the name implies, this layout arranges all five zones along a single wall. The workflow is simple and intuitive: Soiled -> Scrape/Pre-Rinse -> Load -> Wash -> Unload/Dry -> Store. This is often considered the ideal layout for efficiency and preventing cross-contamination, but it requires a significant amount of linear wall space, which may not be available in all kitchens.
U-Shaped or Corner Layout
This is a more space-conscious design where the workflow turns a 90-degree corner, typically with the conveyor dishwasher placed in the corner. The soiled dish table runs along one wall, feeding into the machine, and the clean dish table runs along the adjacent wall. This brings the soiled and clean ends of the operation closer together, which can allow the station to be run by fewer staff members during slower periods. Careful design is needed to ensure the corner doesn't become a bottleneck and that the clean/dirty separation is strictly maintained.
Essential Accessories and Supporting Equipment
A successful high-volume dishwashing solution is more than just a machine and some tables. The right accessories are vital for function and safety.
- The Right Dish Racks: Use a variety of racks designed for specific purposes—peg racks for plates and trays, open racks for bowls and pots, and compartmentalized racks for glassware and cutlery—to ensure thorough cleaning and prevent breakage.
- Chemical Dispensers: Automated dispensing systems are a must. They ensure the precise amount of detergent, rinse aid, and sanitizer is used in every cycle, providing consistent results and controlling supply costs.
- Booster Heaters: For high-temperature machines, an external or built-in booster heater is required to heat the final rinse water to the NSF-required 180°F for proper sanitization.
- Ventilation and Condensate Hoods: A conveyor dishwasher generates a large amount of steam and heat. Proper ventilation, usually in the form of a purpose-built condensate hood over the machine, is essential for maintaining a safe, comfortable working environment and preventing moisture damage to the facility.
- Flooring and Drains: The warewashing area is a wet environment. Floors should be non-slip and sloped towards easily accessible floor drains to prevent pooling water. Anti-fatigue mats can greatly improve staff comfort and safety.
Conclusion: An Investment in Total Kitchen Performance
Designing the perfect warewashing station is a strategic investment that pays dividends across your entire operation. By focusing on a logical, five-zone workflow centered around a high-performance conveyor dishwasher, you can eliminate critical bottlenecks, elevate your standards of hygiene, reduce labor and utility costs, and create a safer, more pleasant environment for your staff. Remember that the dishwasher is the engine, but the surrounding layout is the finely-tuned chassis that allows it to perform at its peak. Take the time to plan your dish pit design meticulously. The result will be a seamless, efficient, and reliable system that supports your kitchen's success for years to come.
